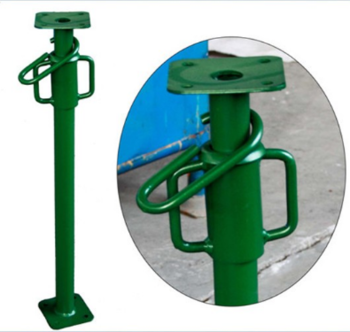

The adjustable steel props has the characteristics of adjustable length, strong versatility, convenient installation, and ability to adapt to different storey heights, and is widely used in building formwork supports. The adjustable steel props consists of three parts: sleeve, cannula and steel props head. According to the thread type, it can be divided into external threaded steel pillars and internal threaded steel pillars.
The design and processing of the adjustable steel props is very flexible. It can process and produce adjustable steel props with different steel pipe diameters, wall thicknesses, and telescopic heights according to the needs of the project, so as to achieve the greatest saving of materials. The adjustable steel support is the most ideal replacement product to replace the existing steel pipe fastener scaffolding and bowl buckle scaffolding wooden support as formwork support.
As a manufacturer of adjustable steel props, its usage method is as follows:
1. First use the handle to screw the adjusting nut to the lowest position.
2. Insert the upper tube into the lower tube to approximately the desired height, then insert the pin into the adjustment hole located above the adjustment nut.
3. Move the adjustable steel support to the working position, and use the handle to rotate the adjustment nut to make the adjustable support support the supported object.
Notes on the use of adjustable steel supports:
1. The adjustable steel support should be placed on a flat ground with sufficient strength;
2. The adjustable steel support should be installed vertically to avoid the load as much as possible; when the adjustable steel support is used;
3. When the height exceeds 3.5 meters, it needs to be reinforced with fasteners and two right-angled or crossed steel pipe locks.
